Managing Charts

This chapter describes how to edit and manage the charts in your dashboards.

Editing a Chart #

Lucidum allows you to edit an existing chart, copy a chart from one dashboard to another, and delete an existing chart from a dashboard.

To edit a chart in a dashboard:

  1. Log in to your Lucidum system.

  2. In the left menu, click Dashboards.

  3. In the Channel pane, click the channel where the dashboard lives.

  4. In the right pane, find the dashboard you want to edit. Click the dashboard name.

  5. Lucidum loads the dashboard.

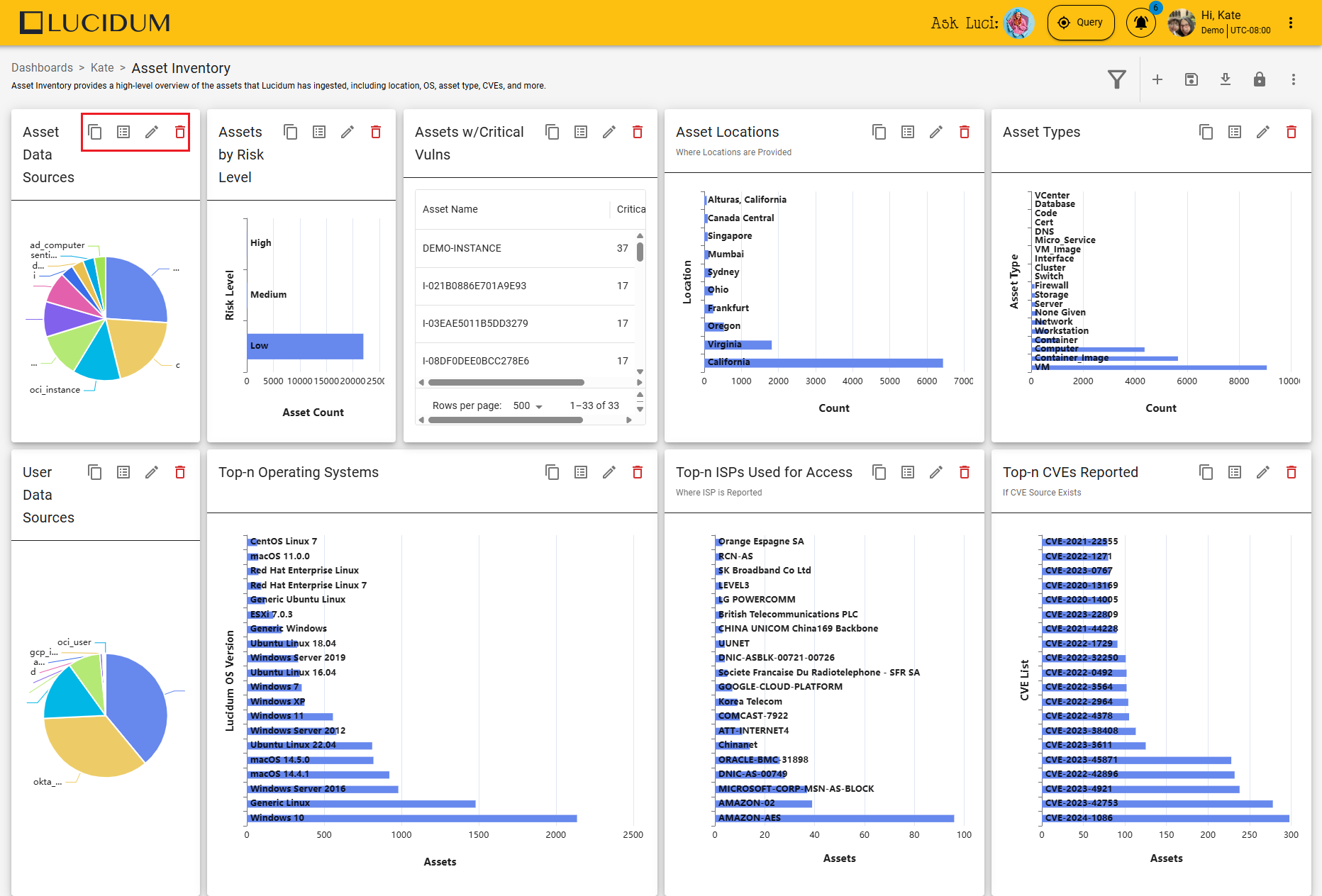

  6. In the dashboard, click the Edit This Dashboard (pencil) icon.


  7. Note that now each chart includes a set of icons to the left of the chart name.

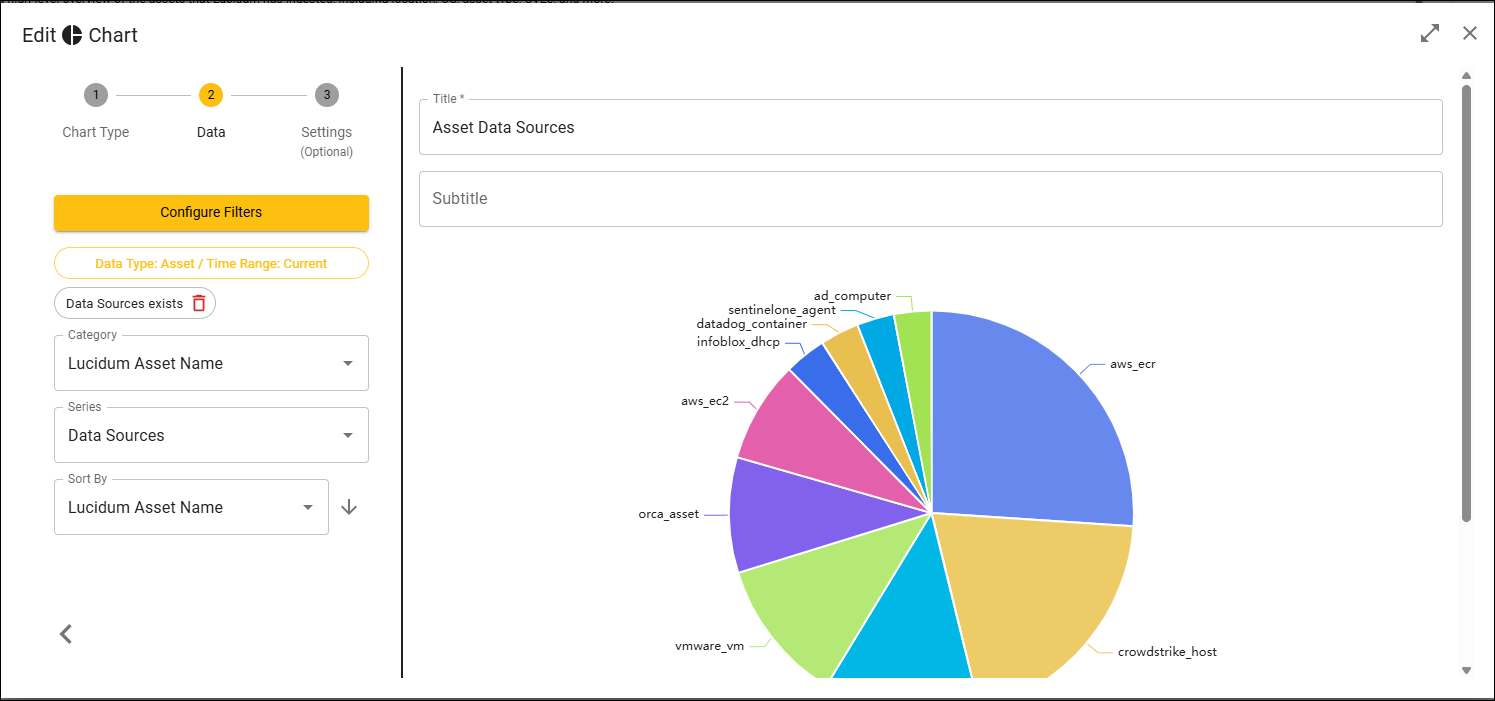

  8. Find the chart you want to edit. Click its Settings (pencil) icon. The Edit Chart page appears.


  9. In the Edit Chart page, you can edit any of the fields for the chart, including the query.

  10. For details on all the fields in a chart, see the chapter on Creating a Chart.

  11. For details on creating and editing queries, see the chapter on Building Queries.

  12. To save you changes, click the Preview (eye) icon and then click the Save Chart (disc) icon. to save your changes.

Copying a Chart #

To copy a chart to another dashboard:
